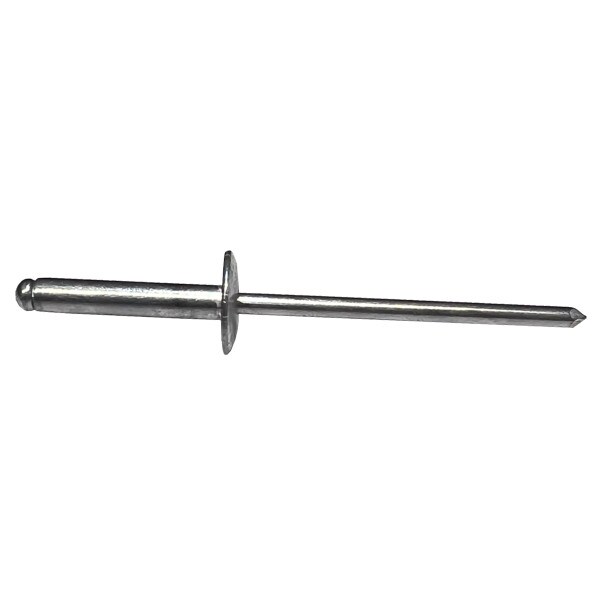

Rivet, Marson Brand, Large Flange, Aluminum Rivet, Aluminum Mandrel, Mill Finish

Multi-grip blind breakstem rivets. One rivet can be used in multiple material thicknesses, reducing inventories and helping to eliminate operator error. One size handles the grip range capacity of 2-3 standard open-end rivets. Positive stem retention, complete hole fill and wide grip range. Stem is locked in shell, eliminating the risk of mandrel head vibrating loose while providing a weather resistant joint. The bulbing formation of the Avex® will fill slightly oversized or irregular holes, providing increased strength and vibration resistance. In addition to the Avex® Brand Mulit-Grip rivet, SRI also distributes a Marson® Brand Multi-Grip rivet. These Marson® Brand rivets are structurally equivalent to the Avex® Brand rivet. All Avex® and Marson® Multi-Grip Rivets in this section are constructed with an Aluminum Rivet body and a Steel Mandrel. Applications: The low-profile dome head is appropriate for most applications. However, when soft or brittle materials are fastened to a rigid backing member, the large flange head should be considered, because it offers twice the bearing surface. Where a flush surface is required, the countersunk head style should be selected.
